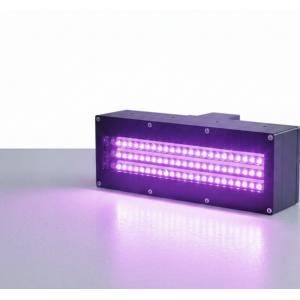

UV Curing Solution UV Light Source High Power UV LED Curing Machine
UV Curing Solution Description
Today, UV LED technology is recognized as a highly efficient solution for drying a wide range of UV-based materials (including resins, inks, and adhesives). By emitting precise UV radiation, this method completes the curing process at remarkable speeds, consistently delivering products with excellent quality and durability.
UV Curing Solution Datasheet
| Model
| CG-CT10-1000*45-6000A/C | lamp color | Rose golden |
| Power | 6000W | Chip brand | LG/Seoul |
| Input voltage | AC85-265V | Wave length | 365/385/395/405nm |
| Application | UV ink/vanish/coating /adhesive curing | Life span | 20000H |
| Cooling way | Water cooling | Emitting window size | customized |
| UV intensity | 18W/CM2 | Dimmable | 0%-100% |
| Best emitting distance | 30-50mm | Package | wooden case |
UV Curing Solution Advantages
UV Curing Solution FAQ:
Q1: What’s the wavelength of the leduv lamp ?
A1: Usually 395-405nm The 395nm/385nm is used for printing machine ,365 nm is for adhesive.
Q2: What’s your led brand ?
A2: LG/Seoul
Q3: What’s the material of lamp and lens ?
A3: Aluminium /quartz
Q4: What’s the cooling way for the leduv curing system ?
A4: Water or air cooling
Q5: The uv intensity can be change?
A5: Yes, the uv intensity is changeable from 0%-100%
Q6: What’s the max energy of uvled lamp ?
A6: It’s depend on emitting time , the longer the higher energy output total amount.
Q7: What’s the lifespan of the uvled curing lamp ?
A7: Our warranty is 2yeas for all system (Chiller /power supply ) mostly can reach 5yeas
